Polygon Hotspots

  • PCA translate all position information for each point of the selected MESH and outputs it as krpano xml code
  • You can enter a name and a style
  • You can print multiple hotspots at once
  • You can split 3 dimensional objects into several flat objects

PCA Polygon Hotspots

How to use​

  • Create your polygonal hotspot model. The object must contain polygon(s) and must be flat (or almost flat).

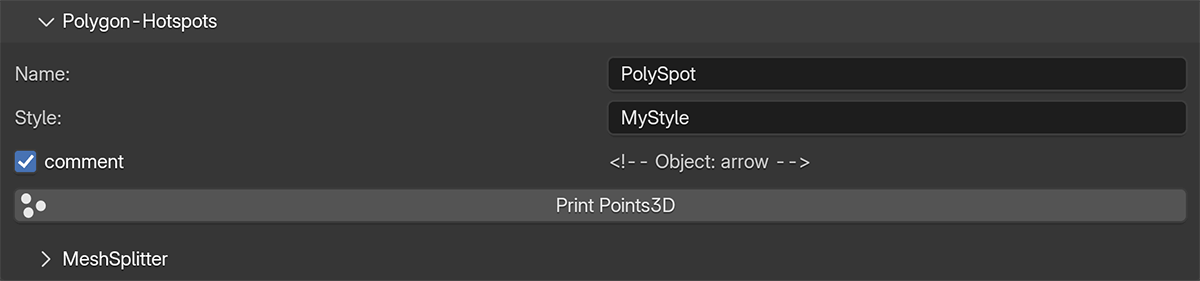

  • Select the object and press the Print Points3D.
  • The XML code is output in a text file in the text editor.
warning

During the process, the MESH is converted into a CURVE in order to select the correct sequence of verticies. This can cause the loss of UV-layou and materials.

So make sure that only objects that you want to use as PolySpot are selected!

Mesh splitter​

If your hotspot mesh is not flat, you can split it into several flat objects. Each face will becomes a seperate object.

  • select the model and press the Split Mesh button
  • select all splitted model parts and hit the Print Points3D button.

Output​

<!-- Object: arrow -->
<hotspot name="PolySpot1" style="MyStyle" points3d="100.0, -0.0, -100.0, -316.45, -0.0, -100.0, -316.45, -39.39, -100.0, 100.0, -39.39, -100.0" />
<!-- Object: arrow.001 -->
<hotspot name="PolySpot2" style="MyStyle" points3d="401.4, -39.39, 0.0, 401.4, -0.0, 0.0, 100.0, -0.0, -161.55, 100.0, -39.39, -161.55" />
<!-- Object: arrow.002 -->
<hotspot name="PolySpot3" style="MyStyle" points3d="401.4, -39.39, 0.0, 401.4, -0.0, 0.0, 100.0, -0.0, 161.55, 100.0, -39.39, 161.55" />
<!-- Object: arrow.003 -->
<hotspot name="PolySpot4" style="MyStyle" points3d="100.0, -0.0, 100.0, 100.0, -39.39, 100.0, -316.45, -39.39, 100.0, -316.45, -0.0, 100.0" />
<!-- Object: arrow.004 -->
<hotspot name="PolySpot5" style="MyStyle" points3d="-316.45, -0.0, 100.0, -316.45, -39.39, 100.0, -316.45, -39.39, -100.0, -316.45, -0.0, -100.0" />
<!-- Object: arrow.005 -->
<hotspot name="PolySpot6" style="MyStyle" points3d="100.0, -0.0, -100.0, 100.0, -0.0, 100.0, -316.45, -0.0, 100.0, -316.45, -0.0, -100.0" />
<!-- Object: arrow.006 -->
<hotspot name="PolySpot7" style="MyStyle" points3d="100.0, -0.0, -161.55, 100.0, -0.0, -100.0, 100.0, -39.39, -100.0, 100.0, -39.39, -161.55" />
<!-- Object: arrow.007 -->
<hotspot name="PolySpot8" style="MyStyle" points3d="401.4, -0.0, 0.0, 100.0, -0.0, 161.55, 100.0, -0.0, -161.55" />
<!-- Object: arrow.008 -->
<hotspot name="PolySpot9" style="MyStyle" points3d="100.0, -39.39, 161.55, 100.0, -39.39, 100.0, 100.0, -0.0, 100.0, 100.0, -0.0, 161.55" />
<!-- Object: arrow.009 -->
<hotspot name="PolySpot10" style="MyStyle" points3d="100.0, -39.39, -100.0, 100.0, -39.39, 100.0, -316.45, -39.39, 100.0, -316.45, -39.39, -100.0" />
<!-- Object: arrow.010 -->
<hotspot name="PolySpot11" style="MyStyle" points3d="401.4, -39.39, 0.0, 100.0, -39.39, 161.55, 100.0, -39.39, -161.55" />
