Depthmap/Panorama

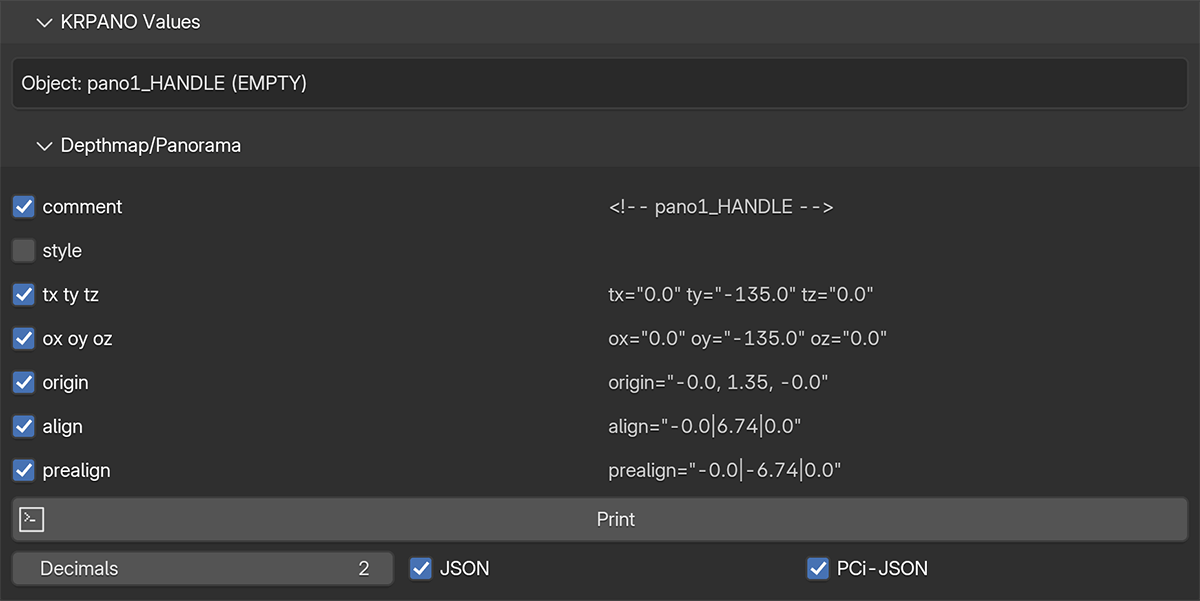

Select one or more pano_HANDLEs or tour-models from the TOUR3D folder to get the krpano values.

Output Options

• comment object name and type
• style to output as krpano style xml
• tx ty tz
• ox oy oz
• origin
• align
• prealign

Example Outputs

pca.txt

<!-- Name=pano1_HANDLE | Type=EMPTY -->
tx="0.0" ty="-135.0" tz="0.0"
ox="0.0" oy="-135.0" oz="0.0"
origin="-0.0, 1.35, -0.0"
align="-0.0|6.74|0.0"
prealign="-0.0|-6.74|0.0"

If the style checkbox is activated, the output is formatted as xml krpano-style:

<!-- Name=pano1_HANDLE | Type=EMPTY -->
<style name="pano1_STYLE"
    tx="0.0" ty="-135.0" tz="0.0"
    prealign="-0.0|-6.74|0.0"
    linkedscene="scene_pano1"
/>

pca.JSON

[
    {
        "name": "pano1",
        "pano": "pano1.jpg",
        "scene": "scene_pano1",
        "style": "pano1_STYLE",
        "location": [
            0.0,
            -135.0,
            0.0
        ],
        "origin": [
            -0.0,
            1.35,
            -0.0
        ],
        "align": [
            -0.0,
            6.74,
            0.0
        ],
        "prealign": [
            -0.0,
            -6.74,
            0.0
        ]
    }
]

pci.JSON

[
    {
        "pano": "pano1.jpg",
        "location": [
            0.0,
            0.0,
            1.35
        ],
        "rotation": [
            0.0,
            -0.0,
            0.12
        ]
    }
]
