3D Hotspot Values

Output of values for 3D-Model hotspots (threeJS plugin)

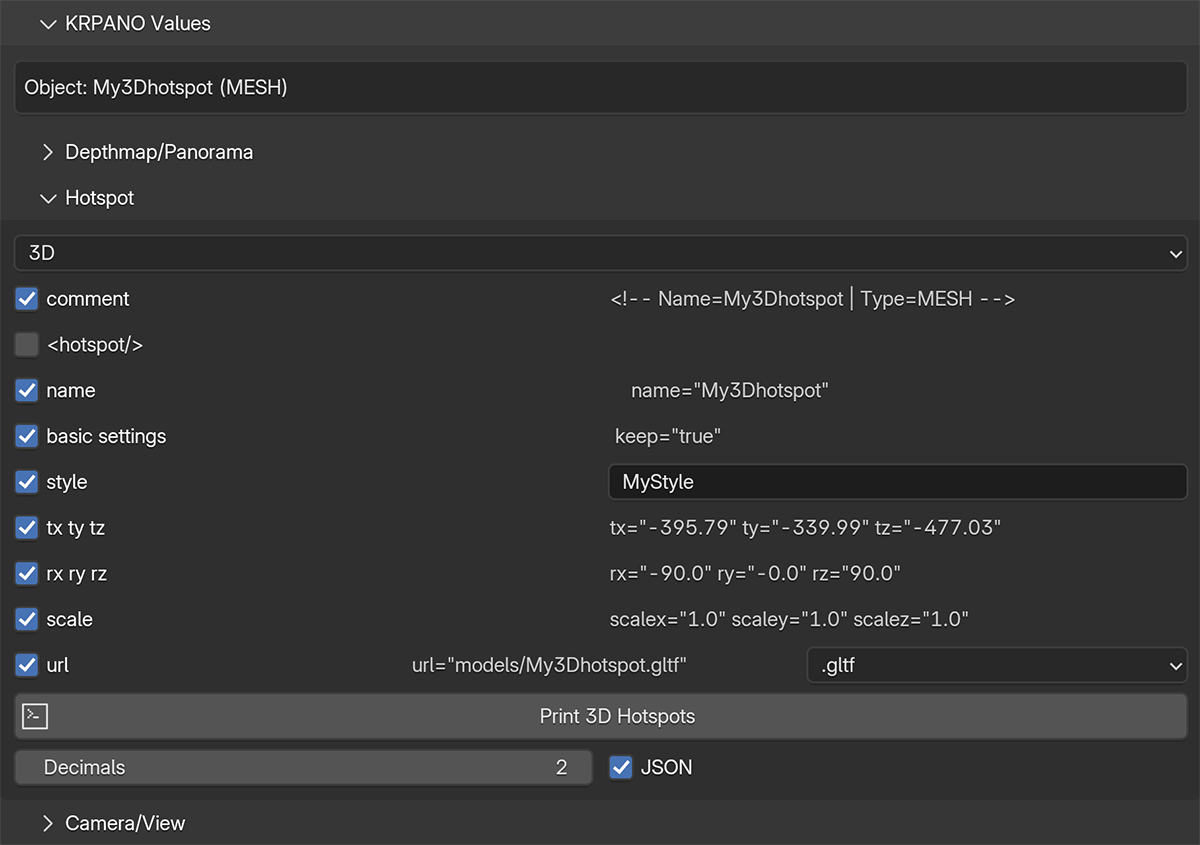

The setting options for 3D hotspots become visible when a MESH is selected and 3D is selected in the Type drop-down menu - or when an EMPTY is selected.

Output Options

• comment object-name and type
• hotspot to output as krpano hotspot xml
• name the object name
• style user input
• tx ty tz
• rx ry rz
• scale scalex/scaley/scalez
• url folder + object-name + extension (the folder can be set in the add-on preferences)

Output Examples

pca.txt

<!-- Name=MyModel | Type=EMPTY -->
name="MyModel"
style="MyStyle"
tx="-631.52" ty="-311.34" tz="763.18"
rx="0.0" ry="-0.0" rz="-0.0"
scalex="1.0" scaley="1.0" scalez="2.0"
url="models/MyModel.gltf"

If the hotspot checkbox is activated, the output is formatted as krpano-hotspot xml:

<!-- Name=MyModel | Type=EMPTY -->
<hotspot name="MyModel"
    style="MyStyle"
    tx="-631.52" ty="-311.34" tz="763.18"
    rx="0.0" ry="-0.0" rz="-0.0"
    scalex="1.0" scaley="1.0" scalez="2.0"
    url="models/MyModel.gltf"
/>

pca.JSON

[
    {
        "name": "MyModel",
        "type": "image",
        "style": "MyStyle",
        "location": [
            -631.52,
            -311.34,
            763.18
        ],
        "rotation": [
            0.0,
            -0.0,
            -0.0
        ],
        "scale": [
            1.0,
            2.0,
            2.0
        ],
        "url": "models/MyModel.gltf"
    }
]
