POINT LIGHT

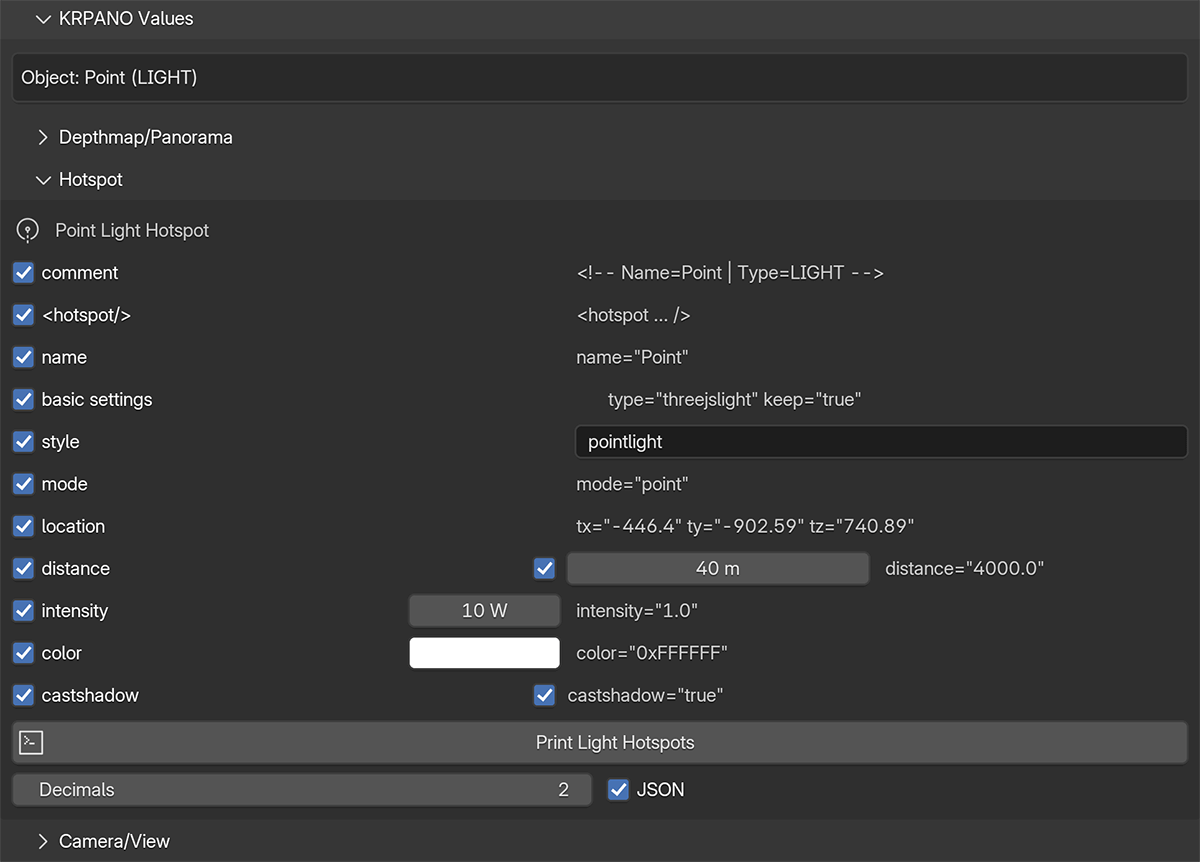

The output options become visible when a POINT-LIGHT is selected.

Select the variables you want to output and click on the Print Light Hotspots button.

pca pointlight values

Output Options​

  • comment object-name and type
  • hotspot to output as krpano hotspot xml
  • name the object name
  • basic-settings can be defined in the add-on preferences
  • style user input
  • mode light mode (SUN, POINT, SPOT)
  • location ath/atv
  • distance
  • intensity
  • color
  • castshadow

Output Examples​

<!-- Name=Point | Type=LIGHT -->
name="Point"
type="threejslight" keep="true"
style="pointlight"
mode="point"
tx="-446.4" ty="-902.59" tz="740.89"
distance="4000.0"
intensity="1.0"
color="0xFFFFFF"
castshadow="true"

If the hotspot checkbox is activated, the output is formatted as krpano-hotspot xml:

<!-- Name=Point | Type=LIGHT -->
<hotspot name="Point"
    style="pointlight"
    tx="-446.4" ty="-902.59" tz="740.89"
    intensity="1.0"
    color="0xFFFFFF"
/>
